Kinghang Technology Focusing on high-end industrial product trade and solutions, linking 3000+ top Chinese manufacturers (covering aviation, aerospace, shipbuilding, and electronics), building an efficient supply chain bridge for global customers. Core values: ✓ Accurate matching: strictly selecting international standard products such as aviation parts, aerospace materials, optoelectronic equipment, etc.; ✓ Cost optimization: one-stop sourcing + simplified cross-border processes to ensure "good quality and low price"; ✓ Integration solutions: customized "turnkey" services, modular integration of multi-supplier technologies, and full-process collaborative adaptation needs.

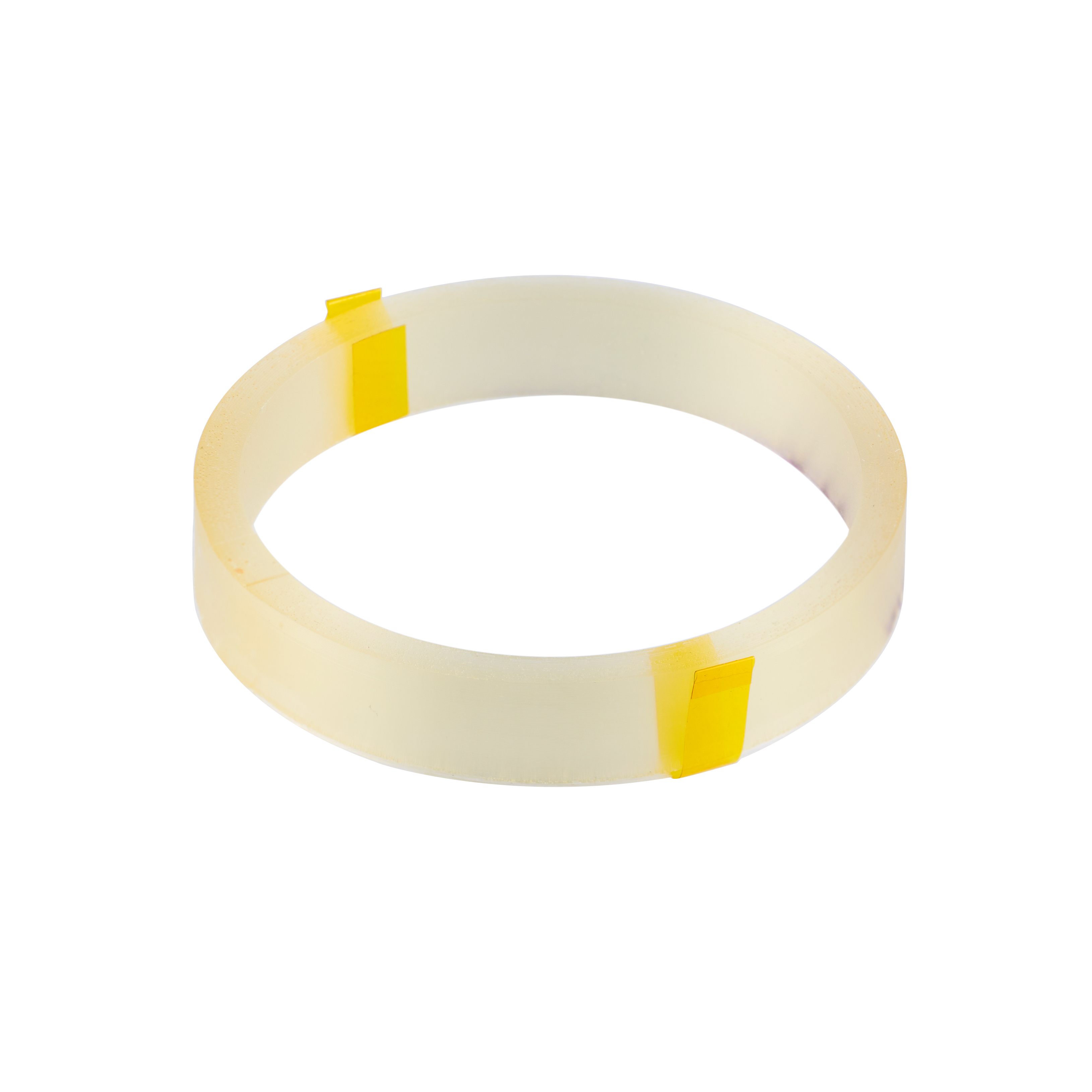

Standard frameless optic fiber coil for fiber optic gyroscope

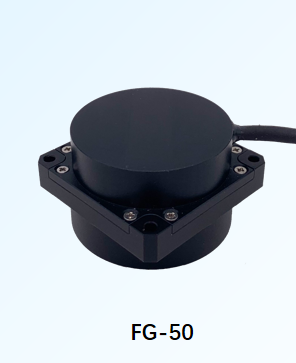

FG-50 is single-axis closed-loop low precision fiber gyroscope

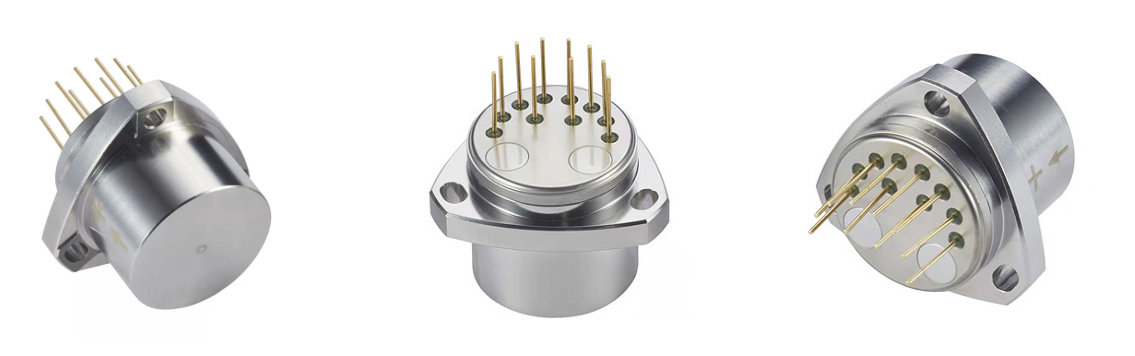

ACC1 series vibration acceleration sensor is a high-precision accelerometer with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static and dynamic tests. It is also a standard vibration sensor and tilt sensor. The output current of the product has a linear relationship with the force or acceleration, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the bias and scale factor and reduce the influence of ambient temperature according to the user's requirements.

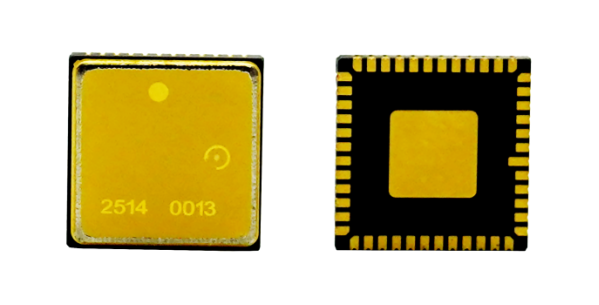

MEMS gyroscope chips are sensors based on MEMS technology.Utilizing micro-nano fabrication techniques,they integrate mechanical structures,sensing circuits,and signal processing systems onto a silicon-basedchip to perceive and convert physical quantities such as pressure,acceleration,and temperature.

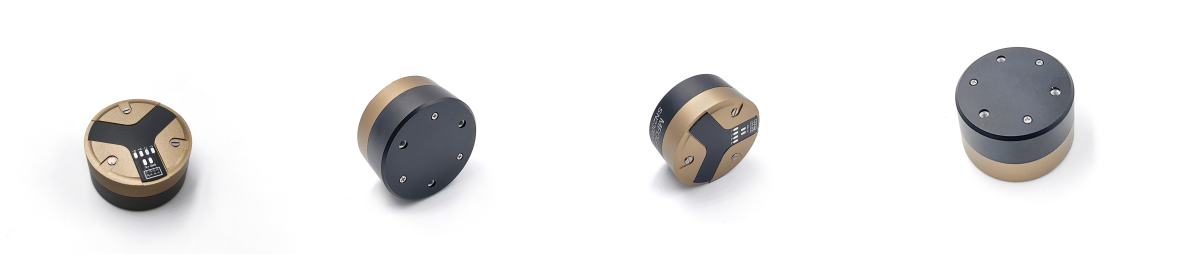

MFOG-40 micro-nano fiber optic gyroscope is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions. It is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

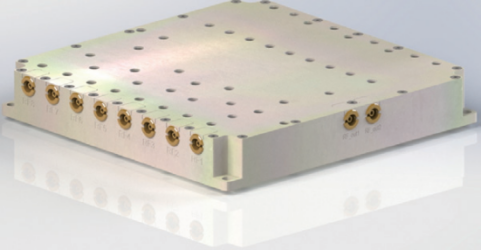

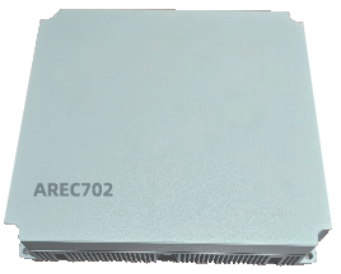

Medium dynamic algorithm supported； Based on self-designed anti-jamming algorithm, highly integrated ； with positioning module for option； Light weight within 2Kg and low power consumption down to 20W； Excellent anti-jamming performance for interference suppression ； including wide-ban, narrowband, pluse and sweeping ； Anti-spoofing algorithm for option
Based on self-designed anti-jamming algorithm, highly integrated ； with positioning module for option； Light weight within 220g and low power consumption down to 20W ； Excellent anti-jamming performance for interference suppression ； including wide-ban, narrowband, pluse and sweeping ； Anti-spoofing algorithm for option ； Medium dynamic algorithm supported for option；
Based on self-designed anti-jamming chip, highly integrated with ； positioning module for option； Light weight within 500g and low power consumption down to 30W ； Excellent anti-jamming performance for interference suppression； including wide-ban, narrowband, pluse and sweeping ； Anti-spoofing algorithm for option ； Medium dynamic algorithm supported for option；

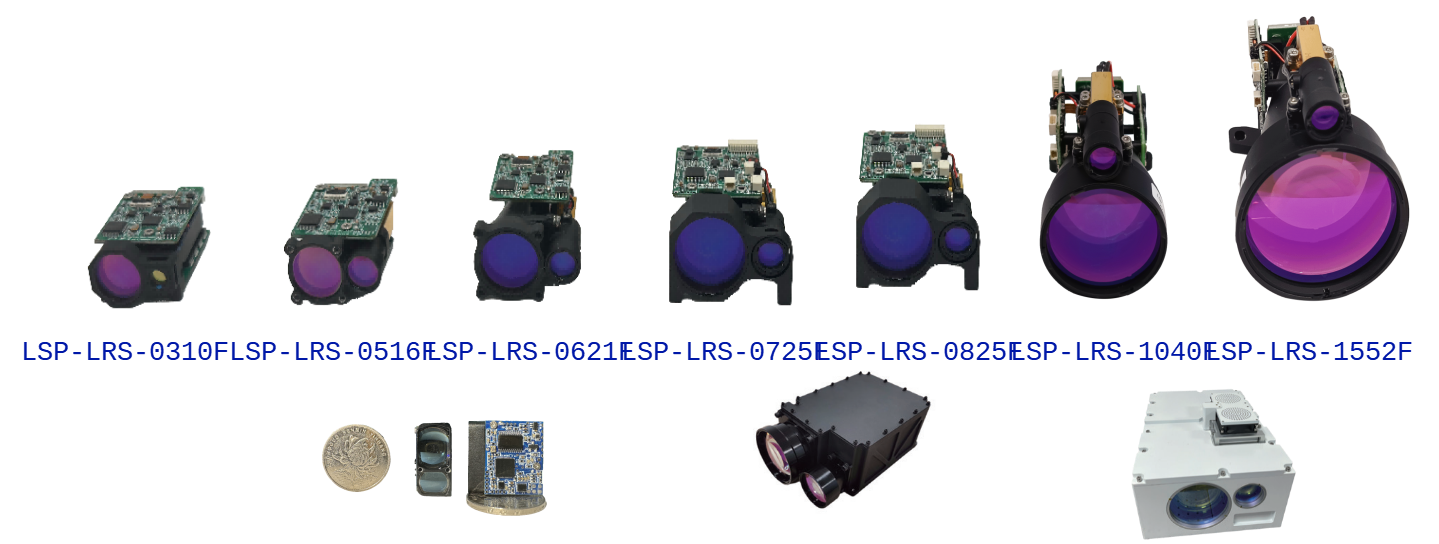

The laser ranging module is to realize the determination of target distance information through the detection of the return signal of the emitted laser. This series of products has mature technology and stable performance, which can test a variety of static and dynamic targets, and are used in photoelectric pods, photoelectric turntables, unmanned aerial vehicles, handheld sighting, etc. There are four series of our laser ranging modules:905nm series (Distance Measurement Capability: 1.2km-2.5km/high frequency); 1535nm series( Distance Measurement Capability: 1km-15km); 1570nm series(Distance Measurement Capability:20km-40km), 1064nm series(Distance Measurement Capability15km-35km)

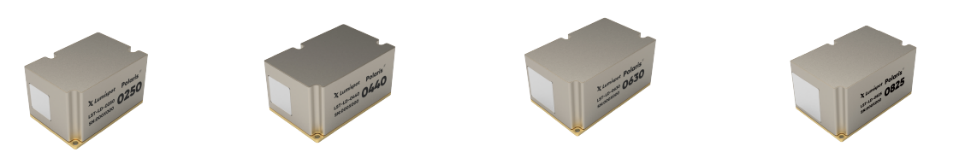

Lumispot's latest “Polaris Series” laser designator features patented laser technology that ensures highly reliable and stable laser output even in harsh environments. The compact and lightweight design, based on advanced thermal management technology, meets the strin- gent size and weight requirements of military electro-optical platforms.

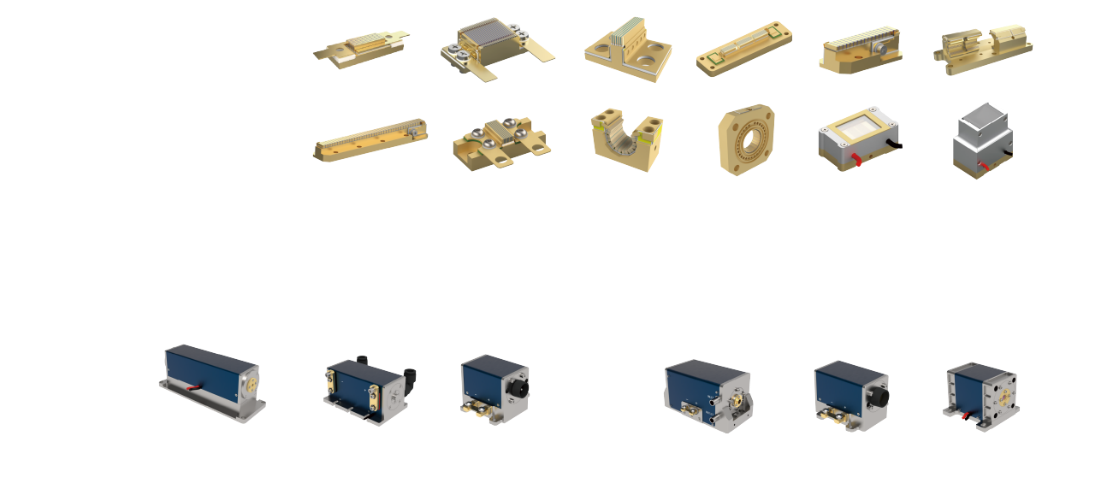

1.Bar laser series As a high-power semiconductor laser, it has the advantages of high electro-optical conversion efficiency, high peak power, high energy density, good flexibility, long life and high reliability, and has become a key component in the development of a new generation of high-tech weapons and high-tech industries in various related fields of the national economy. 2.Semiconductor Side Pump Gain Module Series (DPL) It is a component that uses a semiconductor laser as a pump source and inputs light energy into a solid-state laser gain medium through side pumping, thereby improving the output power and efficiency of the laser.

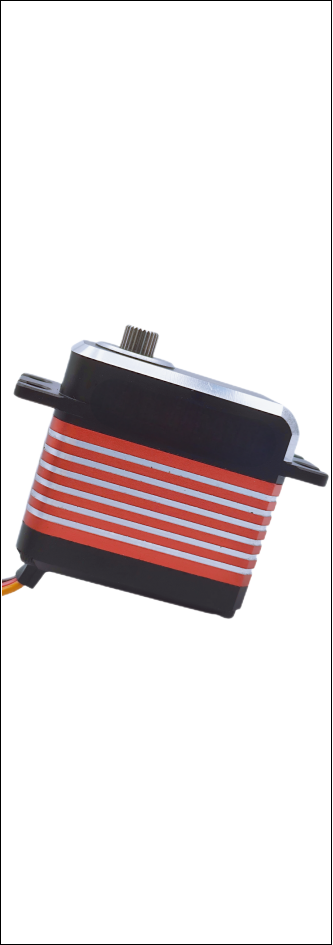

Storage Temperature: -20℃～+65℃(-4℉～+149˚F) Operating Temperature: -20℃～+65℃(-4℉～+149˚F) Dimensions: 40*20*38mm Weight: 77g Gear Type: Stainless Steel Mechanism Limit Angle: 210° Bearing: Double Ball Bearing Output Shaft: 25T-φ5.96mm Pendulum Arm: Plastic,POM Housing: CNC Housing Servo Line: 300mm Motor: Brushless Motor Water Resistance: IP56 Operating voltage: 4.8V-8.4V No-load speed: 0.15 sec/60°-0.09 sec/60° No-load current: 240mA-440mA Stall torque: 21kgf.cm-45kgf.cm Rated torque: 10.5kgf.cm-22.5kgf.cm Stall current: 3.5A-7.0A Control Signal: PWM 50-333Hz Amplifier Type: Digital Controller Pulse Width Range: 800 to 2200µsec Direction of Rotation: CCW Neutral position: 1500 µsec Rotation angle: 120° Deadband width: 2 µsec
Storage Temperature: -20℃～+65℃(-4℉～+149˚F) Operating Temperature: -20℃～+65℃(-4℉～+149˚F) Dimensions: 30*10*35mm Weight: 30g Gear Type: hard steel Bearing: Double Ball Bearing Output Shaft: 25T-φ4.93mm Pendulum Arm: Plastic,POM Housing: full metal Housing Servo Line: 350mm 3p Motor: coreless motor Water Resistance: IP56 Operating voltage: 4.8V-8.4V No-load speed: 0.17 sec/60°-0.11 sec/60° No-load current: 110mA-300mA Stall torque: 4kgf.cm-9.5kgf.cm Rated torque: 2kgf.cm-4.75kgf.cm Stall current: 1.5A-3.2A Control Signal: PWM 50-333Hz Amplifier Type: Digital Controller Pulse Width Range: 800 to 2200µsec Direction of Rotation: CCW Neutral position: 1500 µsec Rotation angle: 120° Deadband width: 2 µsec

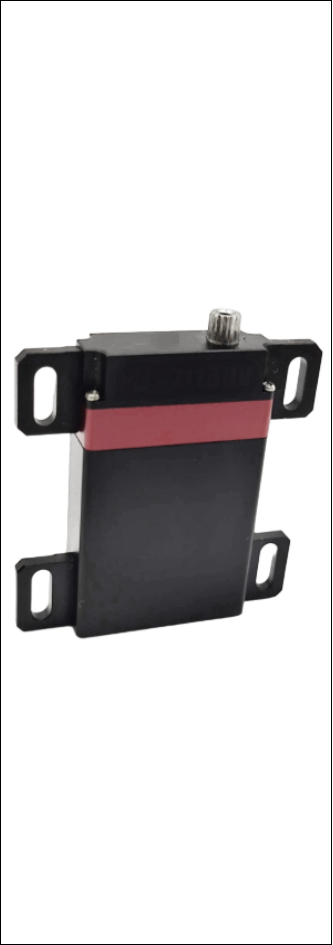

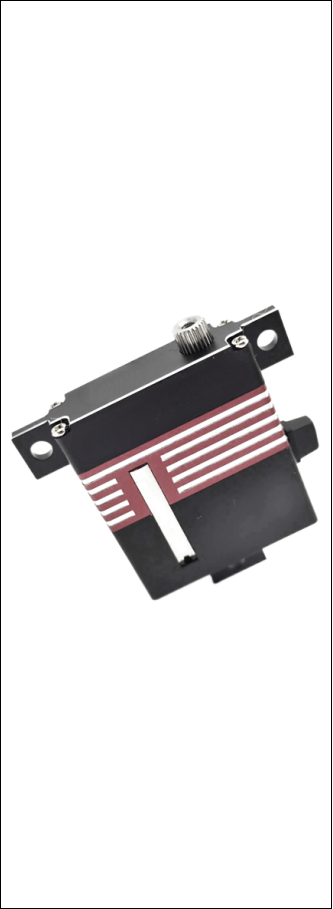

Storage Temperature: -20℃～+65℃(-4℉～+149˚F) Operating Temperature: -20℃～+65℃(-4℉～+149˚F) Dimensions: 23.5*8*37.5mm Weight: 18g Gear Type: Stainless Steel Mechanism Limit Angle: 360° Bearing: Double Ball Bearing Output Shaft: 15T-φ3.85mm Pendulum Arm: Plastic,POM Housing: CNC Housing Servo Line: 300mm Motor: coreless motor Water Resistance: IP56 Operating voltage: 4.8V-8.4V No-load speed: 0.13 sec/60°-0.088 sec/60° No-load current: 20mA-25mA Stall torque: 3kgf.cm-5.2kgf.cm Rated torque: 1.5kgf.cm-2.6kgf.cm Stall current: 0.6A-1.45A Control Signal: PWM 50-333Hz Amplifier Type: Digital Controller Pulse Width Range: 500 to 2500µsec Direction of Rotation: CCW Neutral position: 1500 µsec Rotation angle: 120° Deadband width: 2 µsec
Storage Temperature: -40℃～+70℃ Operating Temperature: -40℃～+70℃ Dimensions: 64*89.85*33mm Weight: 450g Gear Type: Imported 416 stainless steel secondary nitriding hardening Mechanism Limit Angle: 360° Bearing: Double Ball Bearing 2BB Output Shaft: 25T-φ12mm Pendulum Arm: Metal Housing: 7075 Aluminum Alloy Housing Servo Line: J30J aviation plug 500mm Motor: 2835 brushless motor Water Resistance: IP56 Operating voltage: 8.4V-15V No-load speed: 0.15 sec/60°-0.27 sec/60° No-load current: 300mA-500mA Stall torque: 130kgf.cm-200kgf.cm Rated torque: 65kgf.cm-100kgf.cm Stall current: 2.5A-5.5A Quiescent current: 45mA Control Signal: PWM 50-333Hz Amplifier Type: Digital Controller Pulse Width Range: 500 to 2500µsec

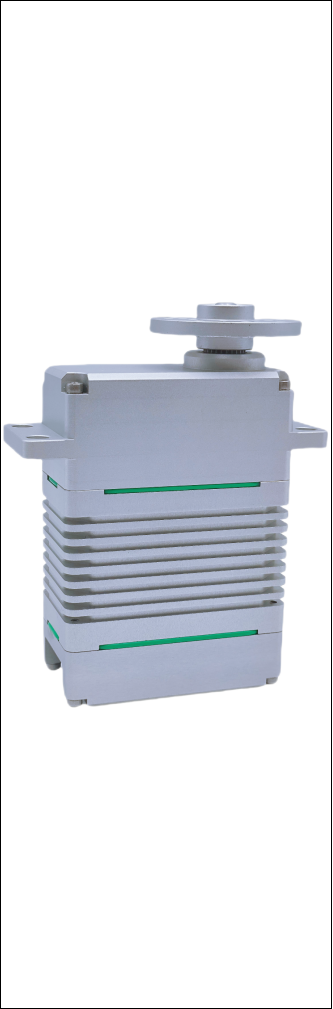

Storage Temperature: -40℃～+70℃ Operating Temperature: -40℃～+70℃ Dimensions: 68*35*120mm Weight: 610g Gear Type: Imported 416 stainless steel Mechanism Limit Angle: 180° Bearing: Double Ball Bearing 2BB Output Shaft: 25T-φ11.8mm Pendulum Arm: 7075 Metal Housing: 7075 CNC Housing Servo Line: J30J 9TJL aviation plug 500mm Motor: brushless motor Water Resistance: IP56/IP67(optional) Operating voltage: 24V-30V No-load speed: 0.16 sec/60°-0.28 sec/60° No-load current: 200mA-400mA Stall torque: 320kgf.cm-390kgf.cm Rated torque: 115kgf.cm-145kgf.cm Rated current: 1.9A-2.3A Stall current: 5A-7A Quiescent current: 60mA Control Signal: PWM/CAN/RS485 Amplifier Type: Digital Controller Rotation angle: 180°
Storage Temperature: -30℃～+60℃ Operating Temperature: -30℃～+65℃ Dimensions: 64*33*73.3mm Weight: 344g Gear Type: Imported 416 heat-treated steel gear Mechanism Limit Angle: 180° Bearing: Double Ball Bearing Output Shaft: 15T-φ7.6mm Pendulum Arm: Metal Housing: CNC Housing Servo Line: 310mm Potentiometer: magnetic sensing Motor: brushless motor Water Resistance: IP56 Operating voltage: 12V-16V No-load speed: 0.16 sec/60°-0.18 sec/60° No-load current: 150mA-270mA Stall torque: 95kgf.cm-125kgf.cm Rated torque: 47.5kgf.cm-62.5kgf.cm Stall current: 4.5A-5.5A Quiescent current: 50mA Control Signal: PWM/CAN/RS485(optional) Amplifier Type: Digital Controller Pulse Width Range: 800 to 2200µsec Direction of Rotation: CCW Neutral position: 1500 µsec

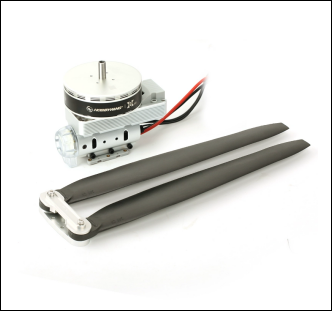

Thrust/rotor: 7-11kg/axis Max Thrust 22kg/rotor(54V, Sea Level) Total Weight: 1524g Recommended LiPo Battery: 12-14S Motor KV Rating 110 rpm/V Propeller: 3411/36190/34.7 Inch Carbon Prop Tube Diameter: 40mm Recommended Drone: For 16L agricultural quadcopter
